EV390
EV390

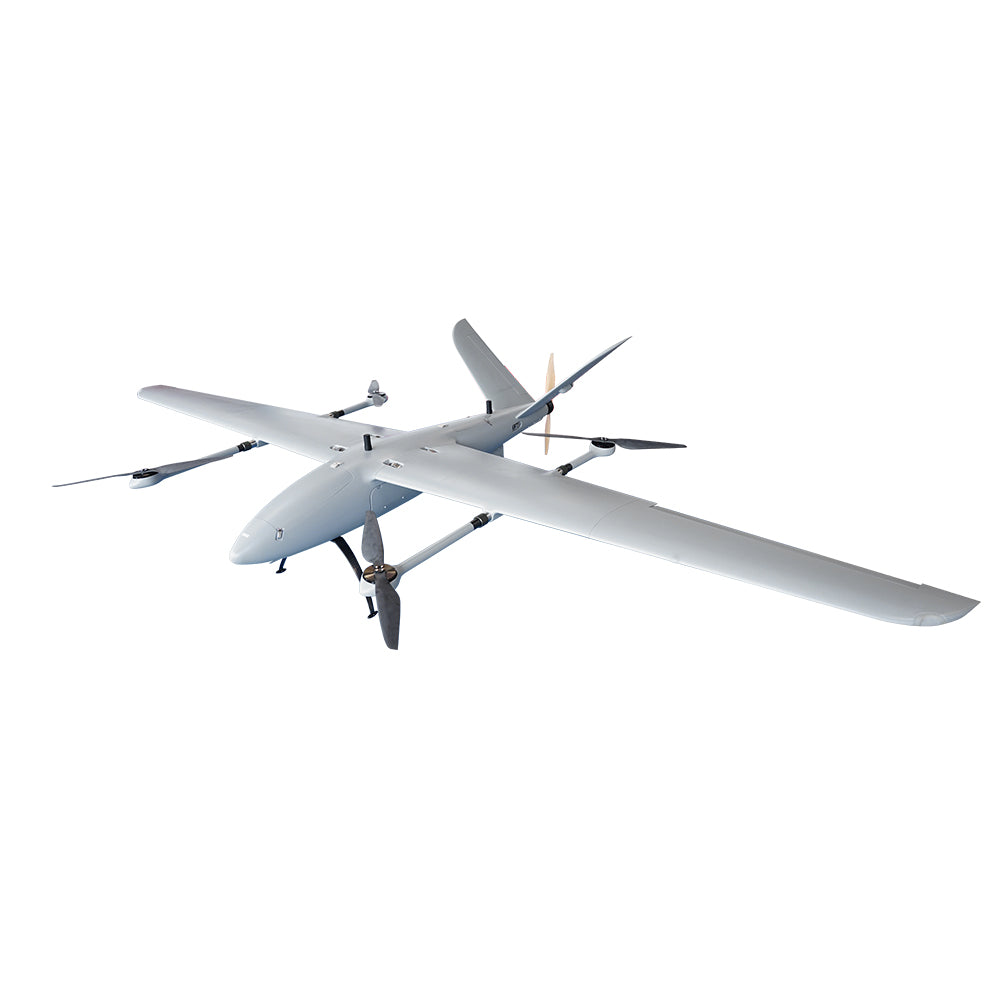

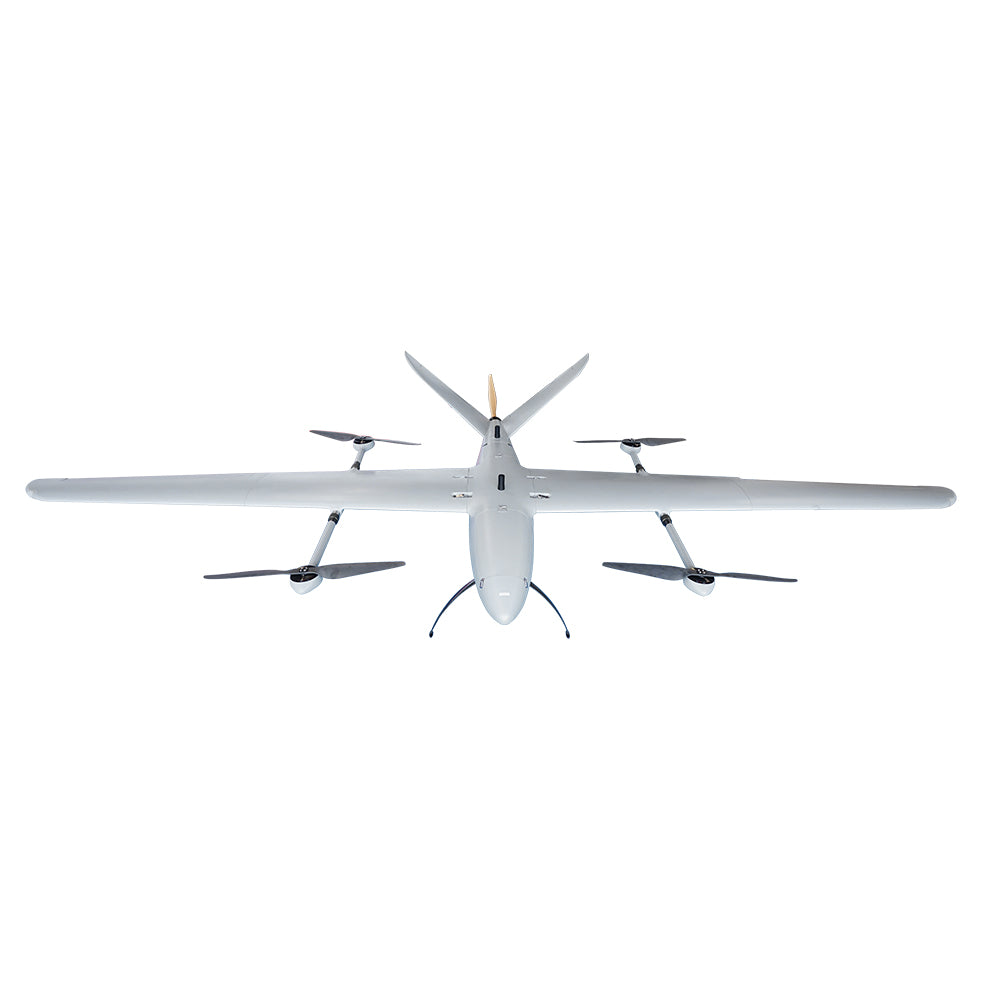

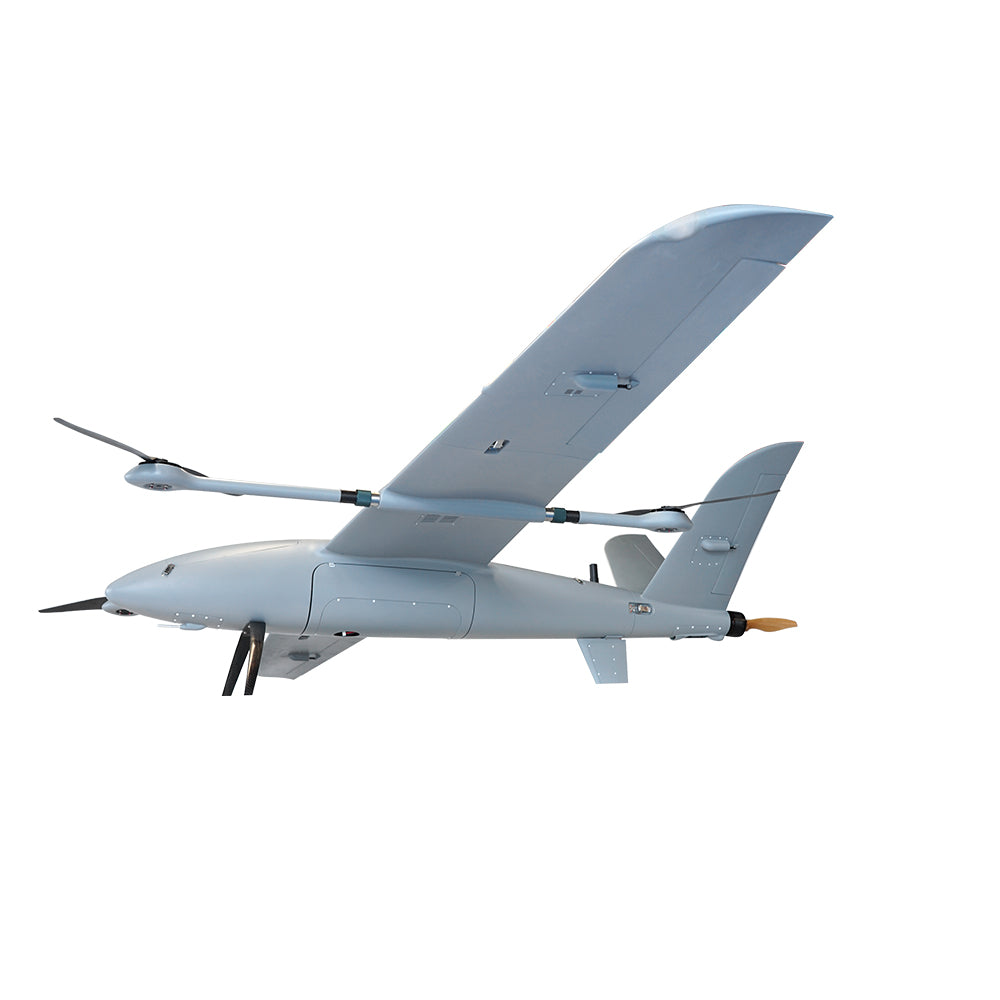

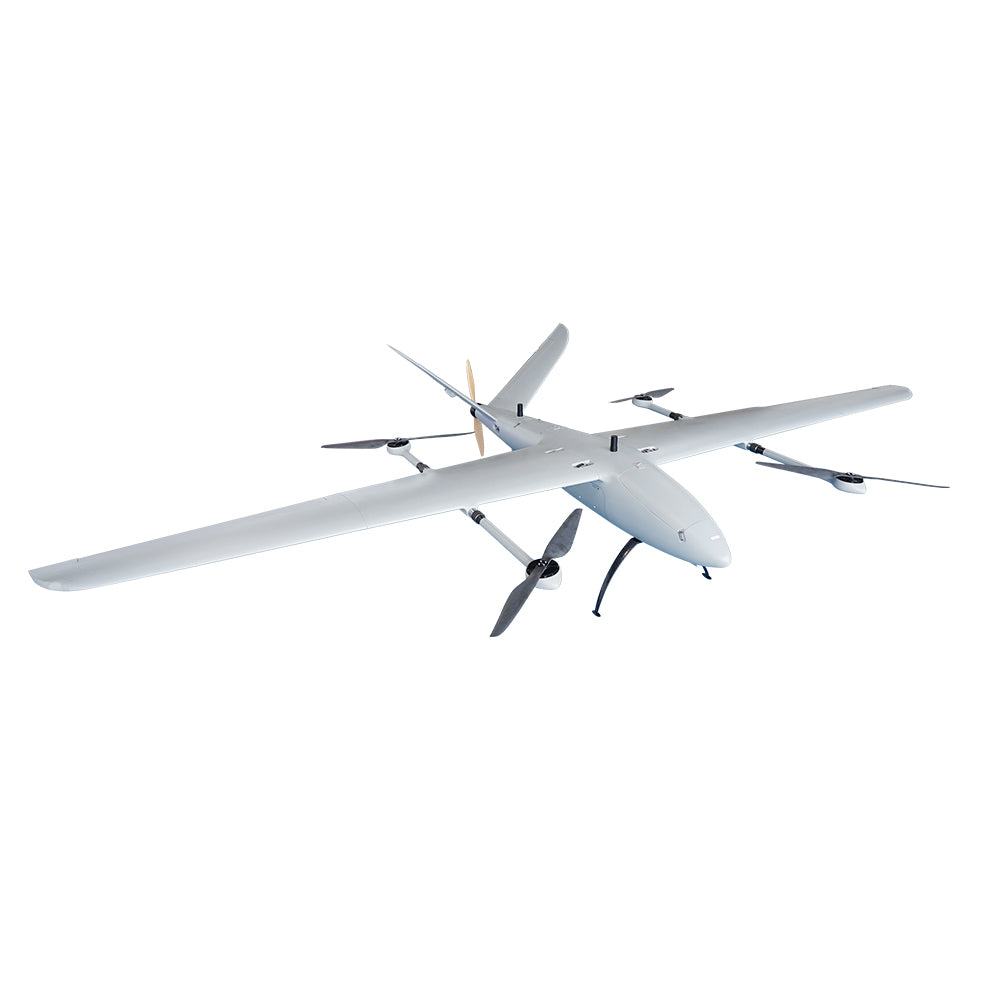

EV390 set a new benchmark for the VTOL UAV industry. It features innovative modular design, excellent aerodynamic layout, powerful flight performance, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any long range aerial operation.
Product Introduction
Specification
Highlights:
- High modular design, true quick release, setup in 2mins, switchable payload bay
- High quality workmanship
- Long endurance: max 3.5hrs
- Heavy lift: max 10kg payload
| Product Parameter | ||
| UAV Platform F390 |
Basic Information | |
| Size |
Wingspan 3914mm, Length 1899mm x Height 750mm |
|
| Flight controller | CUAV V7+ / Cube Orange+ | |
| Materials | Carbon fiber + glass fiber | |
| Battery | 4pc * 6S*30000mAH HED Li-Ion battery | |
| Package type & size | Flight case 1 for fuselage: 158*66*76cm | |
| Flight case 2 for tail: 96*55*65cm | ||
| Performance | ||
| MTOW | 35KG | |
| Max flight speed | 37m/s ( 130km/h) | |
| Cruising speed | 23m/s (83km/h) | |
| Max climbing / decent speed | 4m/s, 5m/s | |
| Max load | 10KG | |
| Max flight altitude AMSL | 4500m | |
| Max wind resistance level | 12m/s | |
| Flight Time | 3.5hrs no load, 1.5hrs @ 10kgs payload | |
| Environment | ||
| IP Grade | IP54 | |
| Working environment | -20°C — 60°C | |
