EV350
EV350

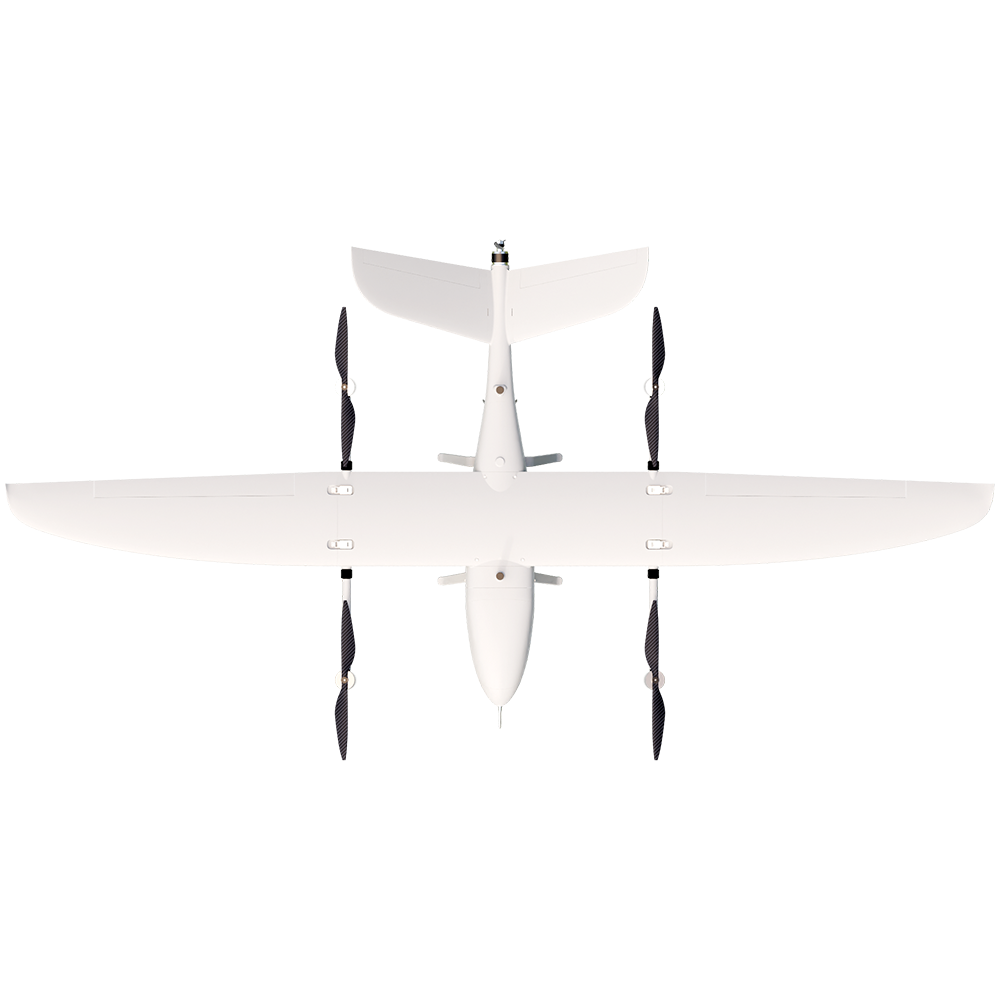

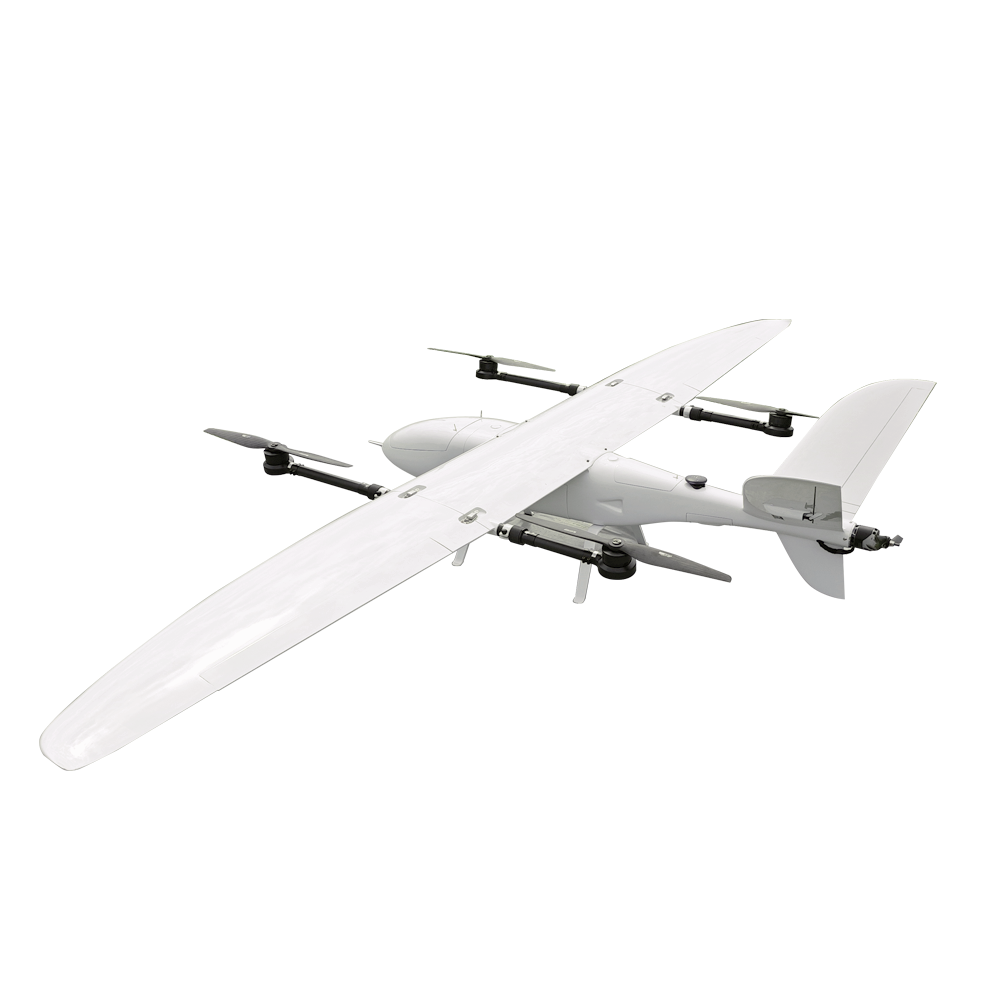

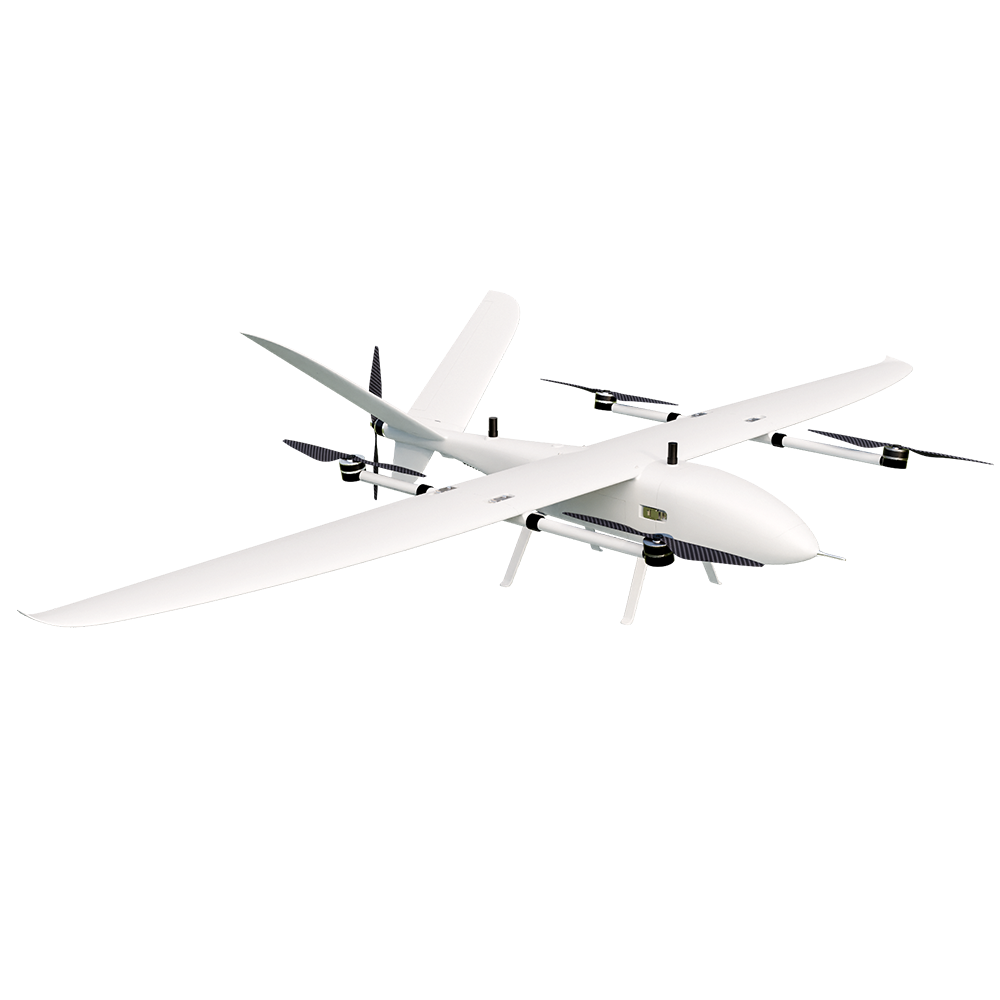

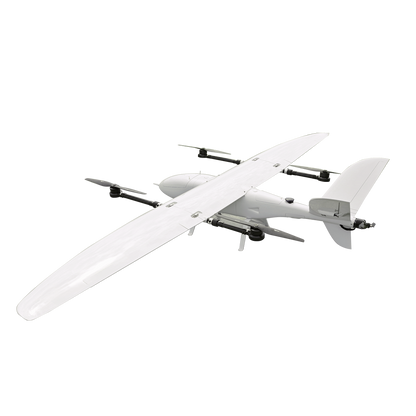

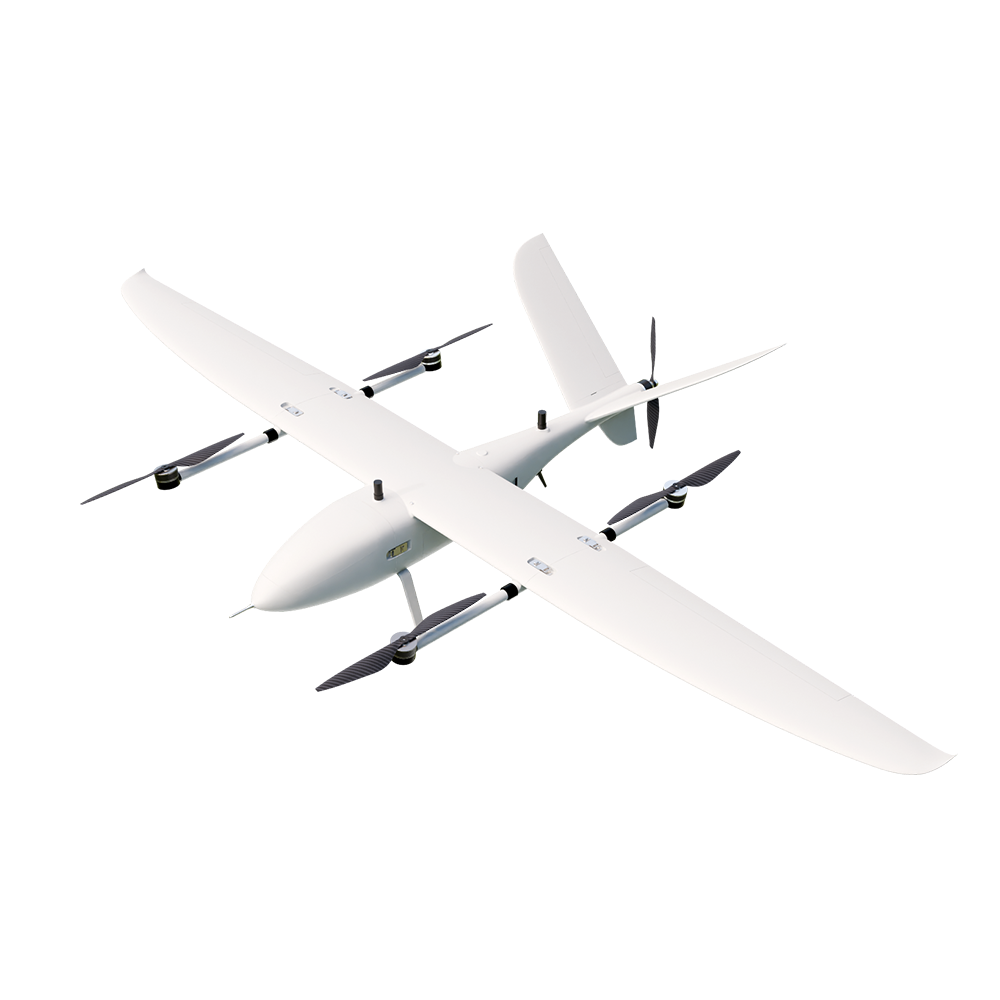

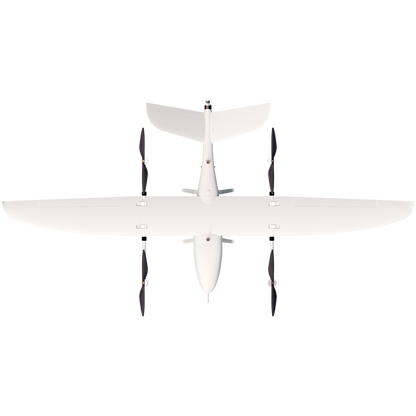

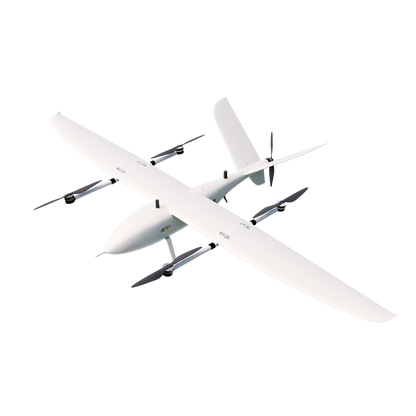

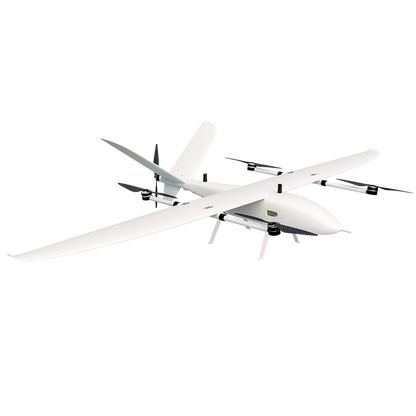

EV350 is a giant tail-pushed electric VTOL fixed wing UAV with large 3.5m wingspan and heavy payload capacity. It can last 150min flight time with 5kg payload and 70min with 10kg payload ( with 4pcs 6S 27000mAH HED (High Energy Density) Li-ion batteries. Equipped with industrial-grade vertical take-off and landing fixed-wing flight control and navigation system.
Product Introduction
Specification
| Hardware | Type | Pure Electric VTOL Fixed Wing |
| Color (default and option) | White, Grey | |
| Wingspan | 3.46 m | |
| Length | 1.72 m | |
| Belly height | 0.175 m | |
| Payload compartment size | WxLxH: 180x230x100 mm | |
| Aviation devices department size | WxLxH: 90x160x60 mm | |
| Material for fuselage | Fiberglass, Carbon fiber reinforced | |
| Fuselage weight | 5.8 kg | |
| PNP weight | 10.5 kg | |
| Flight controller brand and model | CubeOrange+ | |
| Battery type, volume&qty | Solid-State Battery : 6S-39Ah *2 or Solid-State HV Battery: 6S-32Ah *2 |
|
| Multi-purpose Power output | 5.3V *1, 12V *1 | |
| Package | Average deploy time | < 5 minutes Assembly |
| Package type | Aluminium-woonden Flight case | |
| Package overall size | WxLxH: 600 x 1500 x 670 mm | |
| Gross weight with package | 55 kg | |
| Performance | Max payload capacity | 3 kg |
| Suggested max payload | 2.5 kg | |
| MTOW | 20 kg | |
| Flight Endurance without load | 180 minutes | |
| Flight Endurance with Full Load | 140 minutes | |
| Flight Endurance with Standard Load | 160 minutes (1.5kg of payload) | |
| Max cruising speed | 30 m/s | |
| Suggested cruising speed | 22 m/s | |
| Stalling speed | 16 m/s | |
| Max ascent/descent speed | 6 & 7 m/s | |
| Max flight altitude | 5500 m AMSL | |
| Max takeoff altitude | 3500 m AMSL | |
| Max wind resistance | VTOL: 8 m/s, Fixed-wing 13.5 m/s | |
| Lowest&highest Operational Temperature Range | -10℃ ~ +50℃ | |
| IP level | IP45 |
